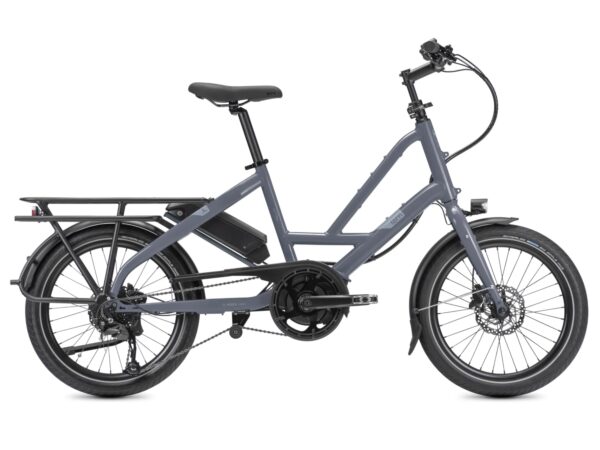

The Full Scoop on the Tern Quick Haul P9 Sport
-
The Quick Haul is a built-to-last compact e-bike that’s ready to tackle your daily grind. The multitool of e-bikes: small and unassuming enough to be your daily go-to, yet capable of handling big jobs with finesse. The Quick Haul makes doing stuff by bike practical, easy, and fun—so you’ll reach for it just about every day. It’s designed to help you carry passengers and cargo with ease, and it’s a joy to ride. A compact, space-saving design simplifies storage and transport. The short, low-capacity rear racks found on most city bikes limit how much you can do by bike (and make defaulting to a car more likely). The Quick Haul features an extra-long rear rack with a 110 lb capacity, so you can do a lot more—from hauling groceries to giving your kid a lift to school. Add an optional front rack to do both at once.
- Components subject to manufacturer changes
-
Motor Bosch Performance Sport, 300% Assist, 65 Nm Torque, max speed 28 mph Battery Bosch PowerPack 400Wh Display Bosch Purion Charger Bosch Compact 2A -
Frame Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kgFork Cargo, steel, EFBE approved: 150 kg Rear Shock Not applicable Front Brake Shimano hydraulic disc brake Rear Brake Shimano hydraulic disc brake Rear Derailleur Shimano Alivio Shadow Shift Levers Shimano Alivio, 1 x 9 spd, trigger Chain KMC for eBike, 9 spd Cassette Shimano 11-34T, 9 spd Crankset Tern custom, forged 6061-AL crankarmChain Ring Spec not provided Chain Guard Spec not provided Rims Kinetix Comp, for disc Front Hub Shimano disc Rear Hub Shimano disc Front Tire Schwalbe Big Apple, 55-406, puncture protection, Reflex Rear Tire Schwalbe Big Apple, 55-406, puncture protection, Reflex Handlebar Low riser, 31.8, 6061-AL Stem Speedlifter, 150 mm extension, 3D Forged stem, 31.8 Headset TH, cartridge bearings Grips Velo ergonomic, lock-on Saddle Velo Comfort Seatpost 31.6 mm, 6061-AL, micro-adjust clamp -
Pedals Urban with non-slip surface Front Light Hermans, 120 lumens Rear Light Herrmans Kickstand pletscher, rear mount Rear Carrier Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 110lb. capacityFenders Chromeplastic, stainless hardwareBell Aluminum Lock Spec not provided Mirror Not applicable -
One Size WEIGHT:23 kg (50.7 lb)GEAR INCHES:31″ – 95″ (2.45 – 7.57 m)FRAME SIZES:One sizeDISTANCE: SEATPOST TO HANDLEBAR:60 – 64 cm (23.6 – 25.2 in)DISTANCE: SADDLE TO PEDAL:68 – 110 cm (26.8 – 43.3 in)SUGGESTED RIDER HEIGHT:160 – 195 cm (63 – 76.8 in)MAX GROSS VEHICLE WEIGHT:150 kg (330.7 lb)MAX RIDER WEIGHT:120 kg (264.6 lb)
