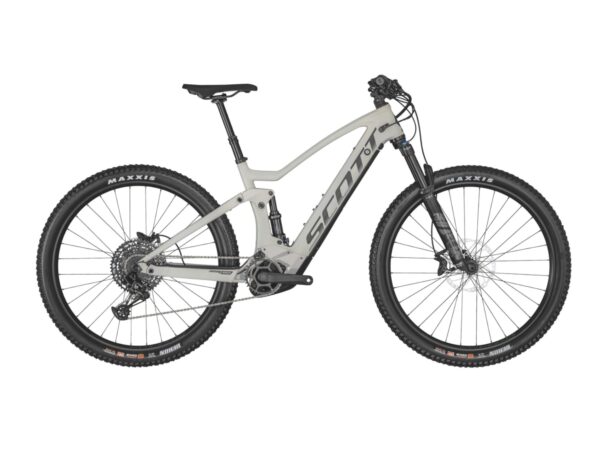

Scott Strike eRide 910

The Full Scoop on the Scott Strike eRide 910

• Description
• Motor System
• Components
• Extras
• Geometry

•
  The Scott Strike eRIDE 910 designed for all day trail riding. Supreme integration and progressive geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a stellar experience up and down the mountain, time and time again. Strike eRIDE – boss the trails.

• Motor	Bosch Performance CX EU: 25kmh / INT: 20mph
  Battery	PowerTube 625Wh
  Display	Bosch Purion
  Charger	4A Charger

• Frame	Carbon Main frame / Alloy Swingarm
  Fork	FOX 34 Float Performance Air / eMTB+ FIT4 3-Modes with low Speed adj. / 15x110mm QR axle, tapered steerer / Reb. Adj. / Lockout / 140mm travel
  Rear Shock	FOX Float EVOL Performance Trunnion 3 modes / Lockout-Trail-Descend DPS / Reb. Adj. Travel 140mm / 185x50mm
  Front Brake	Shimano BR-MT520 4 Piston / SM-RT64 CL 203mm
  Rear Brake	Shimano BR-MT520 4 Piston / RT-EM600 CL 203mm
  Rear Derailleur	SRAM NX Eagle / 12 Speed
  Shift Levers	SRAM SX Eagle Single Click
  Chain	SRAM SX Eagle
  Cassette	SRAM PG1210 / 11-50 T
  Crankset	FSA CK-745 165mm / 34T
  Chain Ring	SRAM Eagle 34T DM / Steel
  Chain Guard	Spec not provided
  Rims	Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready
  Front Hub	Formula CL-811 / 15x110mm
  Rear Hub	Formula ECT-148M / Boost 148x12mm
  Front Tire	Maxxis Rekon / 29×2.6″ / 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
  Rear Tire	Maxxis Rekon / 29×2.6″ / 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
  Handlebar	Syncros Hixon 1.5 / Alloy 2014D.B. 20mm rise / 8° / 760mm Syncros Pro lock-on grips
  Stem	Syncros FL1.5 / 2014 Alloy L-Shape Spacer & Top Cap / 31.8mm / 6° / 1 1/8″
  Headset	Syncros ER2.0 Press Fit E2 / Tapered 1.5″-1 1/8″ OD 52/62mm / ID 44/56mm
  Grips	Spec not provided
  Saddle	Syncros ER1.5 / CRMO rails
  Seatpost	Syncros Duncan Dropper Post 2.5 31.6mm / S size 100mm / M size 125mm / L size 150mm / XL size 170mm

• Pedals	Not applicable
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

• 		S	M	L	XL
  HEAD TUBE ANGLE	A	64.8 °	64.8 °	65.0 °	65.0 °
  HEAD TUBE LENGTH	B	4.7 IN	4.9 IN	5.3 IN	5.7 IN
  TOP TUBE HORIZONTAL	C	23 IN	23.8 IN	25 IN	26.2 IN
  STANDOVER HEIGHT	D	30 IN	30.2 IN	31.4 IN	31.9 IN
  BB OFFSET	E	-1.2 IN	-1.2 IN	-1.2 IN	-1.2 IN
  BB HEIGHT	F	13.7 IN	13.7 IN	13.7 IN	13.7 IN
  WHEEL BASE	G	47.8 IN	48.7 IN	49.5 IN	50.8 IN
  BB CENTER TO TOPTUBE CENTER	H	–	–	–	–
  BB CENTER TO TOP OF SEATTUBE	I	16.1 IN	17.3 IN	19.3 IN	21.3 IN
  SEAT ANGLE	J	75.4 °	75.4 °	74.8 °	74.8 °
  CHAINSTAY	K	18.3 IN	18.3 IN	18.3 IN	18.3 IN
  REACH	L	16.6 IN	17.3 IN	18.1 IN	19.2 IN
  STACK	M	24.7 IN	24.8 IN	25.3 IN	25.6 IN
  STEM LENGTH	N	2.0 IN	2.0 IN	2.4 IN	2.4 IN
  TRAIL	O	5.1 IN	5.1 IN	5.0 IN	5.0 IN
