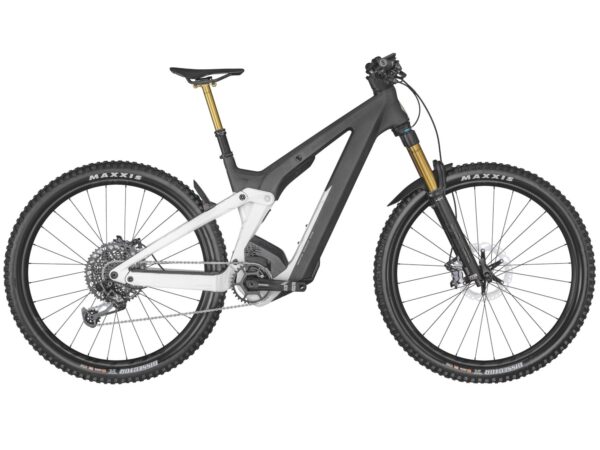

Scott Patron eRide 900 Tuned

The Full Scoop on the Scott Patron eRide 900 Tuned

• Description
• Motor System
• Components
• Extras
• Geometry

•
  The all-new Patron eRIDE Tuned was designed as a system optimized for all day trail riding. Supreme integration and painstakingly chosen geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE – boss the trails.


• Motor	Bosch Performance CX EU: 25kmh / INT: 20mph
  Battery	PowerTube 750Wh
  Display	Bosch LED Remote & Kiox 300
  Charger	4A Charger

• Frame	Carbon Main Frame, Integrated cable
  Fork	FOX 38 Float Factory Air / Kashima / eMTB+ / FIT4 3-Modes with low Speed adj. / QR Axle 15x110mm axle 44mm offset / tapered steerer / Reb. Adj. / Travel 160mm
  Rear Shock	FOX NUDE T eRIDE EVOL / Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend custom large air volume / DPS / Reb. Adj. Travel 160-115-Lockout / 205X60mm
  Front Brake	Shimano XT / BR-M8120 4 Piston
  Rear Brake	Shimano XT / BR-M8120 4 Piston
  Rear Derailleur	Shimano X01 12 speed
  Shift Levers	SRAM GX Eagle Single Click
  Chain	SRAM NX Eagle
  Cassette	SRAM XG1275 / 10-52T
  Crankset	SRAM X1 1000 / 165mm / 34T
  Chain Ring	SRAM Eagle 34T DM /Steel
  Chain Guard	Spec not provided
  Rims	Syncros Revelstoke-E 1.5 CL F: 15x110mm, R: 12x148mm Boost 30mm Tubeless ready rim 28H Syncros Axle w/Removable Lever with Tool
  Front Hub	Spec not provided
  Rear Hub	Spec not provided
  Front Tire	Maxxis Dissector 29×2.6″ 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
  Rear Tire	Maxxis Dissector 29×2.6″ 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
  Handlebar	Syncros Hixon iC SL / 15mm Rise / integrated cockpit S&M: 5° 50mm / L&XL: 4° 60mm virtual stem angle & extension 7° backsweep / 6° upsweep / Syncros Pro lock-on grips
  Stem	Spec not provided
  Headset	Acros / 1.8″ ZS66 OD74 / integr. Cable
  Grips	Spec not provided
  Saddle	Syncros Tofino 1.0 Regular Carbon rails
  Seatpost	FOX Transfer Dropper Post 31.6mm / S size 125mm / M & L size 150mm / XL size 175mm

• Pedals	Not applicable
  Front Light	Bosch Light Cable pre-installed
  Rear Light	Bosch Light Cable pre-installed
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Syncros Trail 2 fender 36/38 eRide integrated light fender (optional)
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable
