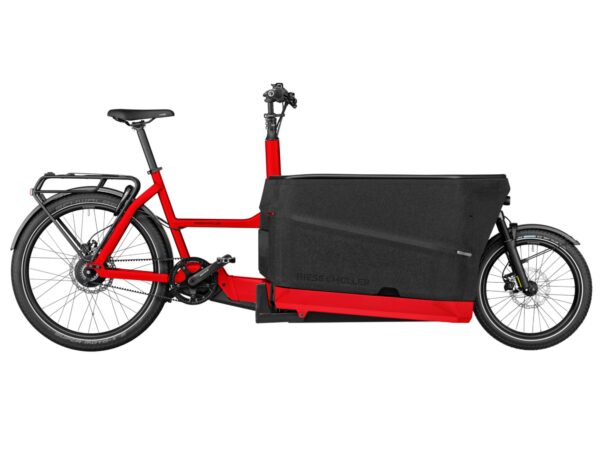

Riese & Muller Packster 70 Vario

The Full Scoop on the Riese and Muller Packster 70 Vario

• Description
• Motor System
• Components
• Extras
• Geometry

• The Packster 70 Vario makes light work of life. Whether you need to transport children or a big load of weekly shopping – the family E-Bike transports everything safely to your destination. You cannot fail to be impressed by its ease of handling, safe riding characteristics and environmentally friendly materials. And, thanks to its height-adjustable saddle and stem, it can be adjusted to different riders in seconds.



  • Components subject to manufacturer changes

• Motor	Cargo Line Cruise (Gen4)
  Battery	Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh; Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh ( 2x )*
  Display	Bosch Purion; Bosch Nyon*; Bosch SmartphoneHub*
  Charger	Bosch

• Frame	chili matt*; urban grey matt*; white*
  Fork	Suntour Mobie A34 CGO Boost, 20″, 80mm
  Rear Shock	X-Fusion Glyde*
  Front Brake	Tektro Auriga Comp HD-500, disc brake; Tektro TRP C 2.3 disc brake*
  Rear Brake	Tektro Auriga Comp HD-500, disc brake; Tektro TRP C 2.3 disc brake*
  Rear Derailluer /Pinion	24T, for Gates drive belt CDX
  Shift Levers	Enviolo grip shift Twist Display Pure, continuous
  Chain	Gates drive belt CDX
  Cassette	Spec not provided
  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	55T, for Gates drive belt CDX
  Chain Guard	Riemenschutzring; Belt guard*
  Rims	Mach1 Trucky30 20″ CNC; Mach1 Trucky30 26″ CNC
  Front Hub	Novatec Disc 32H
  Rear Hub	Enviolo 380, 36H
  Front Tire	Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Super Moto-X 62-559 Reflex; Reifen 20″ SmartSamPlus 60-406 ECE-R75*; Schwalbe Smart Sam Plus 57-559 Reflex*
  Rear Tire	Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Super Moto-X 62-559 Reflex; Reifen 20″ SmartSamPlus 60-406 ECE-R75*; Schwalbe Smart Sam Plus 57-559 Reflex*
  Handlebar	Satori Horizon, 31,8 mm, 9°, B=620 mm; Satori Noirette Plus, 31,8 mm, Alu*
  Stem	Satori, 60 mm, +/-17°
  Headset	Acros AZX-221, block lock; Acros IntegrationX, block lock
  Grips	Herrmans Grips Line
  Saddle	Selle Royal New Lookin Evo R&M; Selle Royal New Lookin Female Evo R&M*
  Seatpost	Satori Trident; Satori Elegance-LT OV 34,9 x 405mm*

• Pedals	VP R&M Custom
  Front Light	Supernova mini 2; Supernova M99 Mini Pro-25*
  Rear Light	Busch & Müller Toplight 2C LED; Supernova M99, integrated brake light*
  Kickstand	Riese & Muller
  Rear carrier	Riese & Müller, MIK
  Fenders	SKS A69R
  Bell	Billy
  Lock	ABUS Shield

• Frame Size	Universal
  Top tube length [cm]	59
  Head tube angle [°]	71
  Seat tube angle [°]	69
  Trail [mm]	48
  Wheelbase [cm]	187/CT:189,5
  Bottom bracket height [cm]	29
  Stand-over height [cm]	57
  Chainstay length [cm]	44/CT:46,5
  Overall length [cm]	249/CT:251,5
  Wheel size [”]	front: 20/rear:26
  Head tube length [mm]	85
  Headset size [”]	1 1/8
  Front suspension travel [mm]	80
  Effective rear suspension travel [mm]	80
  Rear shock length [mm]	165
  Front shock mounting width [mm]	22
  Rear shock mounting width [mm]	22
  Front shock locking screw	8
  Rear shock locking screw	8
  Rear suspension ratio	2,2
  Rear dropout width [mm]	135
  Gear ratio [m]	2,46-9,34
  Weight [kg]	42
  Weight [lbs]	92.6
  Gross vehicle weight rating [kg]	200
  Weight rating: Luggage rack [kg]	27,5/CT:15
  Weight rating: Handlebar bag/basket [kg]	No
  Childseat compatibility	Yes
  Trailer compatibility: Single wheel/single attachment point	No
  Trailer compatibility: Two wheel/single attachment point	Yes
  Compatibility: Tagalong trailer bike	No
