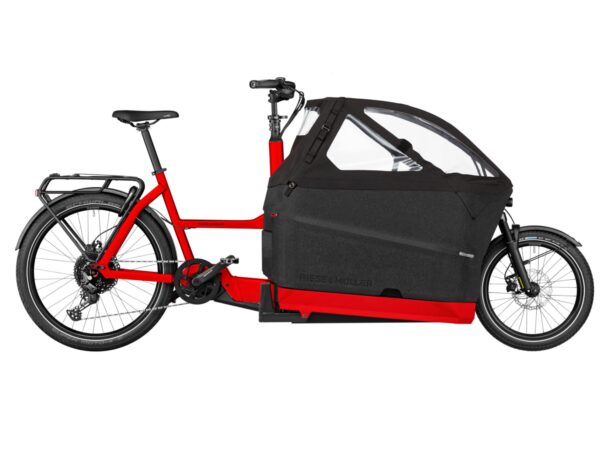

Riese & Muller Packster 70 Family

The Full Scoop on the Riese and Muller Packster 70 Family

• Description
• Motor System
• Components
• Extras
• Geometry

• The Packster 70 Family makes light work of life. Whether you need to transport children or a big load of weekly shopping – the family E-Bike transports everything safely to your destination. You cannot fail to be impressed by its ease of handling, safe riding characteristics and environmentally friendly materials. And, thanks to its height-adjustable saddle and stem, it can be adjusted to different riders in seconds. The Packster 70 Family comes standard with a double child seat, child cover and comfort kit.



  • Components subject to manufacturer changes

• Motor	Cargo Line Cruise (Gen4)
  Battery	Bosch PowerTube 500 Vertical, 36 V, 13,4 Ah/500Wh
  Display	Bosch Purion
  Charger	Bosch

• Frame	chili matt*; urban grey matt*; white*
  Fork	Suntour Mobie A34 CGO Boost, 20″, 80mm
  Rear Shock	X-Fusion Glyde (Option not available on Family Model)
  Front Brake	Tektro Auriga Comp HD-500, disc brake
  Rear Brake	Tektro Auriga Comp HD-500, disc brake
  Rear Derailluer /Pinion	Spec not provided
  Shift Levers	Shimano Deore 10-S Linkglide
  Chain	KMC X11 ( 119x )
  Cassette	Shimano Deore 10-S 11-43 Linkglide
  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	42T
  Chain Guard	Kettenschutzring
  Rims	Mach1 Trucky30 20″ CNC; Mach1 Trucky30 26″ CNC
  Front Hub	Novatec Boost Cargo Disc 32H
  Rear Hub	Shimano Deore Disc, 36H
  Front Tire	Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Super Moto-X 62-559 Reflex
  Rear Tire	Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Super Moto-X 62-559 Reflex
  Handlebar	Satori Noirette Plus, 31,8 mm, Alu
  Stem	Satori, 60 mm, +/-17°
  Headset	Acros IntegrationX, block lock; Cane Creek ViscoSet R&M special
  Grips	Ergon ergonomic
  Saddle	Selle Royal New Lookin Female Evo R&M
  Seatpost	Satori Trident

• Pedals	VP R&M Custom
  Front Light	Supernova mini 2
  Rear Light	Busch & Müller Toplight 2C LED
  Kickstand	Riese & Muller
  Rear carrier	Riese & Müller, MIK
  Fenders	SKS A69R
  Bell	Billy
  Lock	ABUS Shield

• Frame Size	Universal
  Top tube length [cm]	59
  Head tube angle [°]	71
  Seat tube angle [°]	69
  Trail [mm]	48
  Wheelbase [cm]	2187
  Bottom bracket height [cm]	29
  Stand-over height [cm]	59
  Chainstay length [cm]	44
  Overall length [cm]	249
  Wheel size [”]	front: 20/rear:26
  Head tube length [mm]	85
  Front suspension travel [mm]	80
  Rear dropout width [mm]	148
  Gear ratio [m]	2,10-8,19
  Weight [kg]	41,1
  Weight [lbs]	90.6
  Gross vehicle weight rating [kg]	200
  Weight rating: Luggage rack [kg]	27,5
  Weight rating: Handlebar bag/basket [kg]	No
  Childseat compatibility	Yes
  Trailer compatibility: Single wheel/single attachment point	No
  Trailer compatibility: Two wheel/single attachment point	Yes
  Compatibility: Tagalong trailer bike	No
