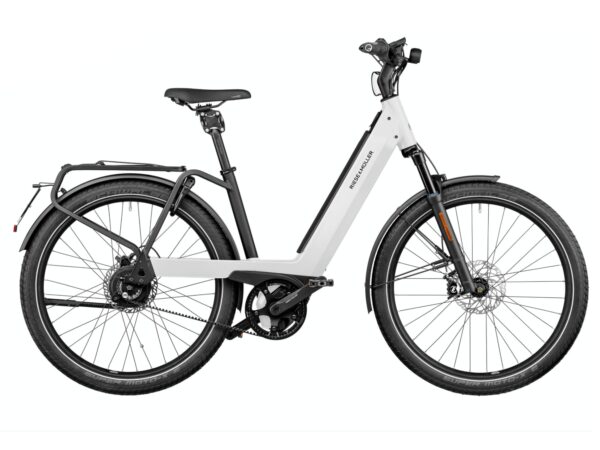

The Full Scoop on the Riese & Muller Nevo GT Vario HS
-
Riese & Muller reinvented the E-Bike’s cockpit: regardless of whether you choose the optional cockpit with Kiox display, the Bosch SmartphoneHub or the Nyon display, all three options are perfectly integrated in the handlebar and feature clean cable routing. The Nevo GT Vario HS eBike’s angle-adjustable stem of the cockpit can be adapted for a comfortable or sportier sitting position.
Components subject to manufacturer changes.
* May differ depending on the availability in your country, design or configuration of the model. The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge.
-
Motor Performance Line Speed (Gen4) Battery Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh*; Bosch PowerTube 500 Horizontal, 36 V, 13,4 Ah/500Wh*; Bosch PowerTube 625 Horizontal, 36 V, 13,4 Ah/625Wh* Display Bosch Intuvia; Bosch Nyon*; Bosch Kiox*; Bosch SmartphoneHub* Charger Spec not provided -
Frame Spec not provided Fork Suntour Aion, Air, tapered, 100mm; Suntour XCR32 27,5″, Air, tapered, black* Rear Shock Not applicable Front Brake Magura MT4, disc brake; Magura MT5, disc brake Rear Brake Magura MT4, disc brake; Magura MT5, disc brake Rear Derailleur Spec not provided
Shift Levers Enviolo grip shift Twist Display Pure, continuous Chain Gates drive belt CDX Cassette Spec not provided Crankset FSA/Riese & Müller, 170 mm Chain Ring 55T, for Gates drive belt CDX Chain Guard Riemenschutzring Rims Rodi Tryp35 27,5″; Mach1 Trucky30 26″ CNC* Front Hub Novatec Disc 32H Rear Hub Enviolo 380, 36H Front Tire Schwalbe Super Moto-X 62-584 Reflex; Schwalbe Big Ben Plus 55-559 Reflex*; Schwalbe Johnny Watts 60-584*; Schwalbe Smart Sam Plus 57-559 Reflex* Rear Tire Schwalbe Super Moto-X 62-584 Reflex; Schwalbe Big Ben Plus 55-559 Reflex*; Schwalbe Johnny Watts 60-584*; Schwalbe Smart Sam Plus 57-559 Reflex*
Handlebar Humpert ergotec Ergo XXL, 31,8 mm; Humpert ergotec Trekking, 31,8 mm, Alu*; Satori R&M Custom Komfort, 25,4 mm, Alu*; Satori R&M Custom, 25,4mm, Alu* Stem Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu* Headset Acros IntegrationX, block lock Grips Ergon ergonomic Saddle Selle Royal New Lookin Evo R&M; Selle Royal New Lookin Female Evo R&M* Seatpost Cane Creek New Thudbuster ST -
Pedals VP R&M Custom; VP-538* Front Light Supernova M99 Rear Light Supernova M99, integrated plate illumination and brake light; Supernova M99, integrated brake light* Kickstand Ursus R78 King 2 Kickstand Rear Carrier Riese & Müller, MIK Fenders SKS A69R Bell Supernova horn Lock ABUS Shield; ABUS Shield X+* Mirror Busch & Müller Cycle Star; Humpert ergotec M-99 E4, CNC* -
43 47 51 56 Height 5’1″ – 5’7″ 5’5″ – 5’10” 5’7″ – 6’0″ 5’10” – 6’4″ Top tube length [cm] 56 60 62 64 Reach [cm] 34,5 37 39 41 Stack [cm] 64,5 69,5 69,5 69,5 Head tube angle [°] 68,5 68 68,5 68,5 Seat tube angle [°] 74 74 74 74 Trail [mm] 87 96 93 93 Wheelbase [cm] 107 114,5 115,5 117,5 Bottom bracket height [cm] 27,5 27,5 27,5 27,5 Stand-over height [cm] 43,5 43,5 43,5 43,5 Chainstay length [cm] 45 48 48 48 Overall length [cm] 174 185,5 186,5 188,5 Wheel size [”] 26 27,5 27,5 27,5 Head tube length [mm] 170 170 170 170 Front suspension travel [mm] 80 100 100 100 Rear dropout width [mm] 135 135 135 135 Gear ratio [m] 2,37-9,01 2,51-9,54 2,51-9,54 2,51-9,54 Weight [kg] 29,1 29,2 29,3 29,4 Weight [lbs] 64 64 65 65 Gross vehicle weight rating [kg] 140 140 140 140 Weight rating: Luggage rack [kg] 20 20 20 20 Weight rating: Handlebar bag/basket [kg] 5 5 5 5 Childseat compatibility Yes Yes Yes Yes Trailer compatibility: Single wheel/single attachment point No No No No Trailer compatibility: Two wheel/single attachment point Yes Yes Yes Yes Compatibility: Tagalong trailer bike Yes Yes Yes Yes
