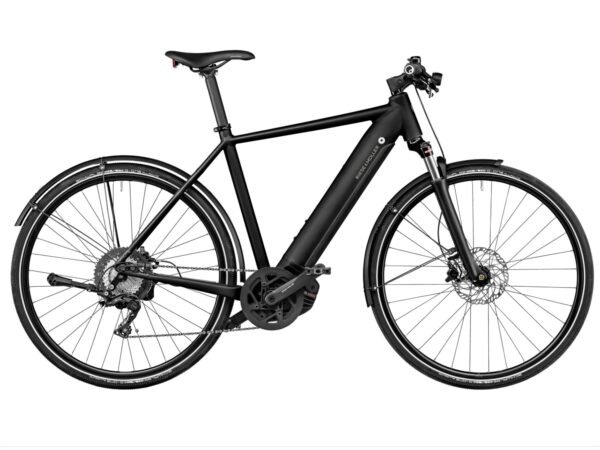

Riese and Muller Roadster Touring

The Full Scoop on the Riese and Muller Roadster Touring

• Description
• Motor System
• Components
• Extras
• Geometry

•
  Sporty lightness paired with a linear design: the Roadster takes you to your destination fast and rewards you for every detour with even more riding enjoyment with its up to 625 Wh of battery capacity. Its optimum weight distribution also makes it extremely agile and safe to handle. The smooth-running Schwalbe G-One tires let you fully enjoy the speed. This sportiness, combined with comfortable features, makes the Roadster the ideal urban bike.

• Components subject to manufacturer changes

• Motor	Bosch Performance Line CX (Gen4)
  Battery	Bosch PowerTube 500 / 625 Wh
  Display	Bosch Nyon, Purion, Smartphone hub
  Charger	Bosch 4a

• Frame	black matt*; grey matt*
  Fork	Suntour NCX 28″, Tapered
  Rear Shock	Not applicable
  Front Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Derailleur	Shimano Deore XT Shadow+, 11-speed
  Shift Levers	Shimano SLX, 11-Speed
  Chain	 KMC X11
  Cassette	Shimano XT 11-S 11-50 Linkglide
  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	48T
  Chain Guard	Chain Guard
  Rims	Mach 1 650, 28″
  Front Hub	Novatec Disc 32H
  Rear Hub	Shimano Deore Disc, 36H
  Front Tire	Schwalbe G-One 40-622 Reflex
  Rear Tire	Schwalbe G-One 40-622 Reflex
  Handlebar	Humpert ergotec ErgoXXL, 31,8 mm; Satori R&M Custom, 25,4mm, Alu*
  Stem	Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
  Headset	Acros AZX-221, block lock; Acros IntegrationX AZX-221, block lock
  Grips	Ergon GA20 black; Ergon GP30-L*
  Saddle	Selle Royal New Lookin Moderate Male
  Seatpost	Satori Trident: Satori Elegance- LT OV

• Pedals	VP R&M Custom
  Front Light	Supernova mini 2
  Rear Light	Busch & Müller XelTec LED; Busch & Müller Toplight 2C LED*
  Kickstand	Ursus R78 King 2 Kickstand
  Rera Carrier	Riese & Müller; Riese & Müller, Racktime*
  Fenders	SKS A45
  Bell	billy
  Lock	ABUS Shield X+

• 	51	56	61
  Height	5’5″ – 5’11”	5’9″ – 6’1″	5’11” – 6’7″
  Top tube length [cm]	54	57	61
  Reach [cm]	36	39	42,5
  Stack [cm]	62,5	63	64
  Head tube angle [°]	69	70	70
  Seat tube angle [°]	74	74	74
  Trail [mm]	88	82	82
  Wheelbase [cm]	108,5	110	114,5
  Bottom bracket height [cm]	27,5	27,5	27,5
  Stand-over height [cm]	83	84,5	86,5
  Chainstay length [cm]	47	47	47
  Overall length [cm]	178	179,5	184
  Wheel size [”]	28	28	28
  Head tube length [mm]	140	140	150
  Front suspension travel [mm]	63	63	63
  Rear dropout width [mm]	135	135	135
  Gear ratio [m]	2,18-8,30	2,18-8,30	2,18-8,30
  Weight [kg]	23,5	23,7	23,9
  Weight [lbs]	51.8	52	52.6
  Gross vehicle weight rating [kg]	140	140	140
  Weight rating: Rear Luggage rack [kg]	20	20	20
  Weight rating: Handlebar bag/basket [kg]	5	5	5
  Childseat compatibility	Yes	Yes	Yes
  Trailer compatibility: Single wheel/single attachment point	Yes	Yes	Yes
  Trailer compatibility: Two wheel/single attachment point	Yes	Yes	Yes
  Compatibility: Tagalong trailer bike	Yes	Yes	Yes
