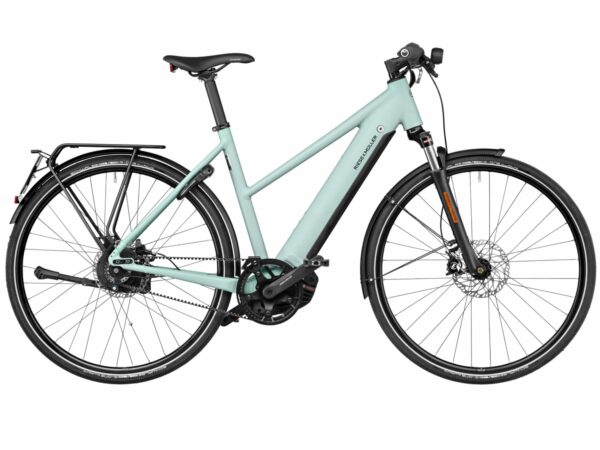

Riese and Muller Roadster Mixte Touring HS

The Full Scoop on the Riese and Muller Roadster Mixte Touring HS

• Description
• Motor System
• Components
• Extras
• Geometry

•
  The Riese and Muller Roadster Mixte Touring HS was made to tackle fast-paced city life. Thanks to the slightly lowered top tube, you can swing easily onto your eBike and ride past everyone effortlessly with a battery capacity of 625 Wh. Riese and Muller Roadster Mixte Touring HS’s optimum weight distribution also makes it extremely agile and safe to handle. This sportiness, combined with comfortable features, makes the Riese and Muller Roadster Mixte Touring HS the ideal urban bike.

  Mixte Vario HS’s slim frame design gives it a sporty character: the frame’s sleek design is reminiscent of conventional bikes, while it meets the highest standards of outstanding German engineering. The Riese and Muller Roadster Mixte Touring HS’s Bosch Performance Line CX motor, boasting 85 Nm, and the integrated battery with 625 Wh are installed in a balanced position for top agility and riding enjoyment. The integrated cabling accentuates the linear appearance.

  Components subject to manufacturer changes..

  * May differ depending on the availability in your country, design or configuration of the model. The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge.

• Motor	Performance Line Speed (Gen4)
  Battery	Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh*
  Display	Bosch Purion; Bosch Nyon*; Bosch SmartphoneHub*
  Charger	Bosch 4a

• Frame	crystal white*; salvia matt*
  Fork	Suntour NCX 28″, tapered
  Rear Shock	Not applicable
  Front Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Derailleur / Pinion	Shimano Deore XT 11-S Linkglide
  Shift Levers	Shimano Deore XT 11-S Linkglide
  Chain	KMC X11 ( 125x )
  Cassette	Shimano XT 11-S 11-50 Linkglide
  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	48T
  Chain Guard	Chain guard
  Rims	Mach1 650, 28″
  Front Hub	Novatec Disc 32H
  Rear Hub	Enviolo 380, 36H
  Front Tire	Schwalbe G-One 40-622
  Rear Tire	Schwalbe G-One 40-622
  Handlebar	Satori Horizon, 31,8 mm, 9°, B=620 mm; Satori Noirette Plus, 31,8 mm, Alu*
  Stem	Satori Stealth 6, 90 mm, +/-7°
  Headset	Acros IntegrationX, block lock
  Grips	Ergon ergonomic
  Saddle	Selle Royal Shadow
  Seatpost	Satori Trident; Satori Elegance-LT OV 34,9 x 405mm*

• Pedals	VP R&M Custom
  Front Light	Supernova M99 Mini Pro-45
  Rear Light	Supernova M99, integrated plate illumination and brake light; Supernova M99, integrated brake light*
  Kickstand	Ursus R78 King 2 Kickstand
  Rear Carrier	Riese & Müller, Racktime
  Fenders	SKS A45
  Bell	Supernova horn
  Lock	ABUS Shield X+
  Mirror	Busch & Müller Cycle Star; Humpert ergotec M-99 E4, CNC*

• 45cm	Height = 1.60 – 1.75 m (5’2″ – 5’7″)
  53cm	Height = 1.70 – 1.85 m (5’5′ – 6’0″)
  Top tube length [cm]	54/57
  Reach [cm]	62,5/64
  Stack [cm]	36/38,5
  Seat tube angle [°]	74
  Trail [mm]	88/82
  Wheelbase [cm]	108,5/110,5
  Bottom bracket height [cm]	27,5
  Stand-over height [cm]	74,5/76
  Overall length [cm]	178/179,5
  Head tube length [mm]	140/150
  Weight [lbs]	24,5/24,8
  Weight rating: Luggage rack [kg]	20
