Riese and Muller Homage GT Vario HS

The Full Scoop on the Riese and Muller Homage GT Vario HS

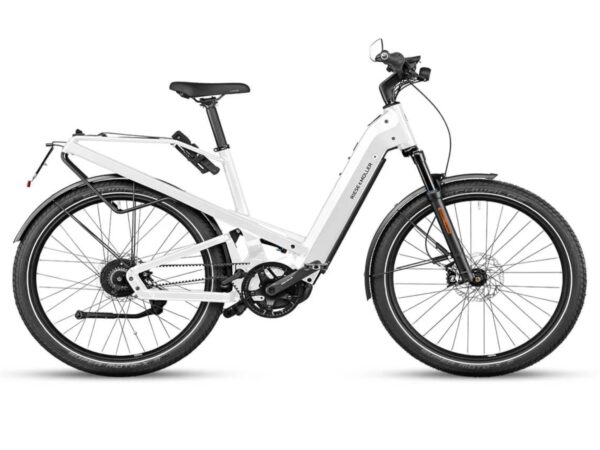

From its striking lines to its carrier and fully integrated battery and motor – the unique design of the Riese & Muller Homage GT Vario HS cannot fail to impress at first sight. Riese & Müller Control Technology with full suspension ensures exceptional riding comfort with top-of-the-line safety. The low step-through allows easy handling in city traffic – and if you want to head out further away or higher up, the DualBattery option with 1,250 Wh capacity boasts a range of up to 160 kilometers.

Components subject to manufacturer changes.

* May differ depending on the availability in your country, design or configuration of the model. The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge.

Motor	Performance Line Speed (Gen4)
Battery	Bosch PowerTube 625 Horizontal, 36 V, 13,4 Ah/625Wh; Bosch PowerTube 625 Horizontal, 36 V, 13,4 Ah/625Wh ( 2x )*
Display	Bosch Intuvia; Bosch Nyon; Bosch Kiox
Charger	Spec not provided

Frame	deepsea blue metallic; pearl white
Fork	Marzocchi Bomber Z2, Air, tapered, 100mm
Rear Shock	Suntour RS-19 190×40
Front Brake	Magura MT4, disc brake; Magura MT5, disc brake
Rear Brake	Magura MT4, disc brake; Magura MT5, disc brake
Rear Derailleur/ Pinion	24T, for Gates drive belt CDX
Shift Levers	Enviolo grip shift Twist Display Pure, continuous
Chain	Gates drive belt CDX
Cassette	Spec not provided
Crankset	FSA/Riese & Müller, 170 mm
Chain Ring	55T, for Gates drive belt CDX
Chain Guard	Belt Guard
Rims	Rodi Tryp35 27,5″
Front Hub	Novatec Boost, QR, 32H; Novatec Disc 32H*
Rear Hub	Novatec Boost, QR, 36H
Front Tire	Schwalbe Johnny Watts 60-584; Schwalbe Super Moto-X 62-584 Reflex
Rear Tire	Schwalbe Johnny Watts 60-584; Schwalbe Super Moto-X 62-584 Reflex
Handlebar	Humpert ergotec Ergo XXL, 31,8 mm; Humpert ergotec Trekking, 31,8 mm, Alu; Satori R&M Custom Komfort, 25,4 mm, Alu; Satori R&M Custom, 25,4mm, Alu*
Stem	Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
Headset	Acros IntegrationX, block lock
Grips	Ergon ergonomic
Saddle	Selle Royal New Lookin Evo R&M; Selle Royal New Lookin Female Evo R&M*
Seatpost	Satori Trident; Dropper Post X-Fusion Manic 70*

Pedals	VP R&M Custom
Front Light	Supernova M99 Mini Pro-45
Rear Light	Supernova M99, integrated brake light*; Supernova M99, integrated plate illumination and brake light
Kickstand	Pletscher Comp 40 Flex
Rear Carrier	integrated, MIK*; Riese & Müller
Fenders	SKS A69R
Bell	Supernova Horn
Lock	Abus Bordo X+ 6000/90cm black
Mirror	Busch & Müller Cycle Star; Humpert ergotec M-99 E4, CNC*

	49	54	58
Height	5’5″ – 5’11”	5’9″ – 6’3″	5’11” – 6’7″
Top tube length [cm]	58,5	61	64
Reach [cm]	38,5	41	44
Stack [cm]	66	66	66
Head tube angle [°]	69	69	69
Seat tube angle [°]	73	73	73
Trail [mm]	89	89	89
Wheelbase [cm]	117	119	122
Bottom bracket height [cm]	30,5	30,5	30,5
Top tube height [cm]	50,5	50,5	50
Chainstay length [cm]	50,5	50,5	50,5
Overall length [cm]	188	190	193
Wheel size [”]	27,5	27,5	27,5
Head tube length [mm]	160	160	160
Front suspension travel [mm]	100	100	100
Effective rear suspension travel [mm]	100	100	100
Rear shock length [mm]	190	190	190
Front shock mounting width [mm]	30	30	30
Rear shock mounting width [mm]	22	22	22
Front shock locking screw	M8	M8	M8
Rear shock locking screw	M8	M8	M8
Rear suspension ratio	2,6	2,6	2,6
Rear dropout width [mm]	135	135	148
Gear ratio [m]	2,51-9,54	2,51-9,54	2,51-9,54
Weight [kg]	30,4	30,6	30,8
Weight [lbs]	67	67	68
Gross vehicle weight rating [kg]	140	140	140
Weight rating: Rear Luggage rack [kg]	20	20	20
Weight rating: Handlebar bag/basket [kg]	5	5	5
Childseat compatibility	Yes	Yes	Yes
Trailer compatibility: Single wheel/single attachment point	No	No	No
Trailer compatibility: Two wheel/single attachment point	Yes	Yes	Yes
Compatibility: Tagalong trailer bike	Yes	Yes	Yes

Model	Base model: Intuvia display, No additional options
