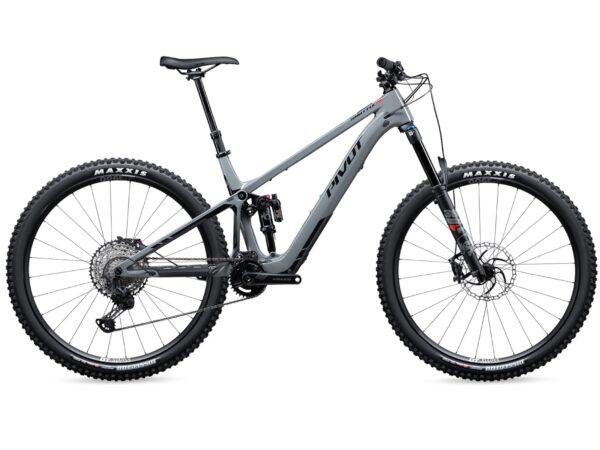

The Full Scoop on the Pivot Shuttle SL Ride SLX/XT
-
The Pivot Shuttle SL Ride SLX/XT boasts a 60Nm FAZUA motor, combined with a 430Wh battery, that is nestled in the downtube provides added punch to your ride, giving you the power to smash climbs and the pop for bigger moves, letting you ride farther, better, and faster. The Pivot Shuttle SL Ride SLX/XT ‘s motor and battery are situated low and close to the center of gravity – a key aspect of the Shuttle SL’s dynamic handling.
-
Motor FAZUA RIDE 60, 43V, 60 Nm max torque, 250 W continuous power, 450 W max Battery Integrated 430 Watt/Hour Battery Display Spec not provided Charger Magnetic Charging Port & Cover -
Frame Shuttle SL Full Carbon Hollow Core Frame Fork Fox Performance E-MTB 36 29″, 44mm offset, GRIP – 150mm Rear Shock Fox Performance Float X Front Brake Shimano SLX M7120 4-piston Rear Brake Shimano SLX M7120 4-piston Rear Derailleur Shimano XT M8100 SGS 12-Speed
Shift Levers Shimano SLX M7100 ISPEC EV 12-Speed Chain Shimano CN-M7100 12-Speed Cassette Shimano SLX M7100 10-51t Crankset PRAXIS ETOR E-MTB 32t Chain Ring Praxis ETOR E-MTB, 32 tooth Chain Guard Spec not provided Rims DT Swiss M1900 w/ DT Swiss 370 hub, 30mm – 29″
15×110 F/12×157 RFront Hub DT Swiss 350 hub Rear Hub DT Swiss 350 hub Front Tire Maxxis Dissector 29″ x 2.4″ WT, TR, 3C, EXO, MAXXTERRA Rear Tire Maxxis Dissector 29″ x 2.4″ WT, TR, 3C, EXO, MAXXTERRA
Handlebar Phoenix Race Low Rise Aluminum -780mm Stem Phoenix Team Enduro/Trail Headset Pivot Precision Sealed Cartridge Grips Phoenix Factory Lock-On Saddle Phoenix WTB Volt Race (Medium Width) Seatpost E13 Vario 150mm – 180mm (SM-MD), 180mm – 210mm (LG-XL) -
Pedals Not applicable Front Light Not applicable Rear Light Not applicable Kickstand Not applicable Rear Carrier Not applicable Fenders Not applicable Bell Not applicable Lock Not applicable Mirror Not applicable -
S(Low/High BB) M(Low/High BB) L(Low/High BB) XL(Low/High BB) Rider Height 5’2″ – 5’8″ 5’7 -6’0 5’10” – 6’2″ 6’1″ + Seat Tube Length (C-T) A 14.5 in 15.5 in 17 in 18.5 in Top Tube Length B 23.5 in 24.9 in/24.8 in 25.4 in 26 in/25.9 in Head Tube Length C 3.7 in 4.4 in 4.6 in 5.1 in Head Tube Angle D 65°/65.5° 65°/65.5° 65°/65.5° 65°/65.4° Seat Tube Angle (Eff.) E 76°/76.5° 76°/76.5° 76°/76.5° 76.8°/77.2°
Chainstay Length F 17 in/16.9 in 17 in/16.9 in 17.1 in 17.2 in Bottom Bracket Height G 13.7 in/13.9 in 13.7 in/13.9 in 13.7 in/13.9 in 13.7 in/13.9 in Bottom Bracket Drop H 1.06 in/.84 in 1.06 in/.84 in 1.06 in/.83 in 1.06 in/.83 in Standover I 26.2 in/26.5 in 26.3 in/26.7 in 26.5 in/26.9 in 26.7 in/27 in Wheelbase J 46.7 in 48.1 in 48.8 in 50.1 in/50 in Stack 24 in/23.9 in 24.6 in/24.5 in 24.8 in/24.6 in 25.3 in/25.1 in Reach 17.1 in/17.3 in 18.3 in/18.5 in 18.8 in/19 in 19.7 in/19.8 in
