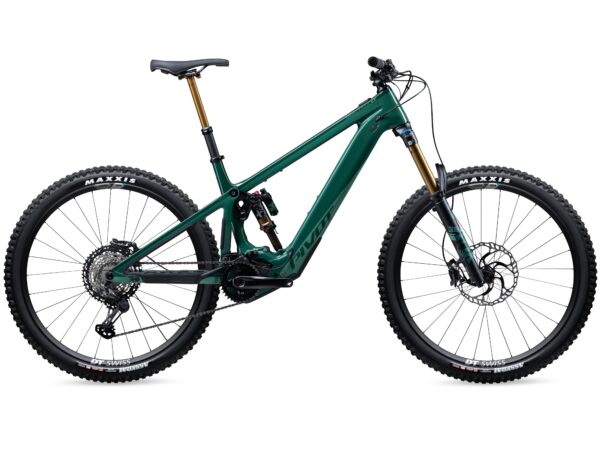

Pivot Shuttle LT Team XTR

The Full Scoop on the Pivot Shuttle LT Team XTR

• Description
• Motor System
• Components
• Extras
• Geometry

•
  Race ready and ultra-refined, the new Shuttle LT is the hyper capable brainchild of the Pivot engineering team that delivered our EWS-proven Firebird. Pivot’s deadly accurate combination of dw-Link suspension and proprietary carbon molding technology come together in a bike that embodies ambition.

• Motor	Shimano Steps DU-EP800, 85Nm
  Battery	Integrated 756Wh
  Display	Spec not provided
  Charger	Spec not provided

• Frame	Full-carbon Frame
  Fork	Fox Factory E-MTB 38 29”, 44mm offset, GRIP – 170mm
  Rear Shock	Fox Factory Float X
  Front Brake	Shimano XTR M9120 4-piston / Galfer 223mm
  Rear Brake	Shimano XTR M9120 4-piston / Galfer 203mm
  Rear Derailleur	Shimano XTR SGS 12-Speed
  Shift Levers	Shimano XTR M9100 12-Speed
  Chain	Shimano CN-M8100 12-Speed
  Cassette	Shimano XT M8100 10-51t
  Crankset	Shimano XT M8150 w/ Shimano e-MTB 34t
  Chain Ring	Spec not provided
  Chain Guard	Spec not provided
  Rims	DT Swiss Hybrid HX1501 30mm  – 29″ 15×110 F/12×157 R
  Front Hub	Spec not provided
  Rear Hub	Spec not provided
  Front Tire	Maxxis Assegai 29″ x 2.5″ WT, TR, 3C, EXO+
  Rear Tire	Maxxis Assegai 29″ x 2.5″ WT, TR, 3C, EXO+
  Handlebar	Phoenix Team Low Rise Carbon
  Stem	Phoenix Team Enduro/Trail
  Headset	Pivot precision sealed cartridge
  Grips	Phoenix Factory Lock-On
  Saddle	Pivot Pro E-Bike
  Seatpost	Fox Transfer Factory Series 150mm 9SM), 175mm (MD-LG), 200mm (XL)

• Pedals	Not applicable
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

• 		Small	Med	Large	X-large
  Rider Height		5’3″ – 5’8″	5’7 -6’0	5’10” – 6’2″	6’1″ +
  Seat Tube Length (C-T)	A	14.6 in	15.7 in	16.9 in	18.5 in
  Top Tube Length	B	23.6 in	24.5 in	25.4 in	26.5 in
  Head Tube Length	C	4.3 in	4.7 in	5.1 in	5.5 in
  Head Tube Angle	D	64.5*	64.5°	64.5°	64.5*
  Seat Tube Angle (Eff.)	E	77°	77°	77.5°	78°
  Chainstay Length	F	17.3 in	17.3 in	17.3 in	17.3 in
  Bottom Bracket Height	G	14.1 in	14.1 in	14.1 in	14.1 in
  Bottom Bracket Drop	H	.07 in	.07 in	.07 in	.07 in
  Standover	I	27.3 in	27.5 in	27.6 in	27.6 in
  Wheelbase	J	48.4 in	49 in	50.4 in	51.5 in
  Stack		24.8 in	25.2 in	25.6 in	25.9 in
  Reach		17.7 in	18.5 in	19.3 in	20.2 in
