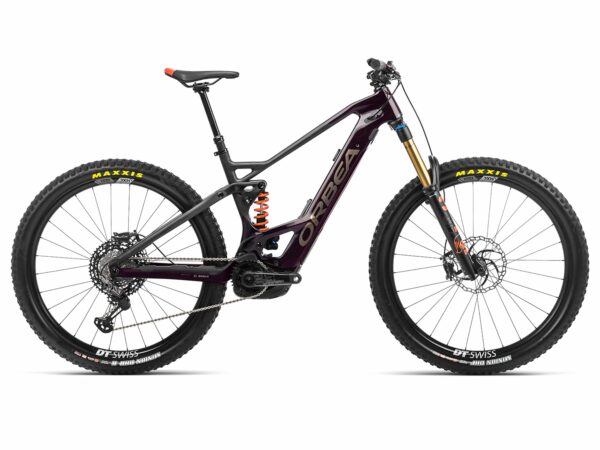

Orbea Wild FS M-LTD – DEMO

The Full Scoop on the Orbea Wild M-LTD (2023) /  Wild FS M-LTD (2022)

• Description
• Motor System
• Components
• Extras
• Geometry
• Previous Model Year Specs

•
  It’s time to get moving. Load up your pack for an afternoon ride and start pedaling. Whatever obstacles exist between you and the trails and your Special Places, it’s time to run over them with your Orbea Wild M-LTD. Conquer steep climbs and push the limits of traction and good judgment on the way back down. Enjoy clever design and sophisticated suspension kinematics, or simply focus on the trail. Orbea Wild M-LTD revitalizes your riding and helps you chart new destinations. Gain maximum capability and speed with the Orbea Wild M-LTD 29″ tires. Wide 2.6″ tires offer a bigger contact patch which equals more grip. The Orbea Wild M-LTD carbon OMR frames blend high modulus fibers and high strength fibers exclusively.

• *Components subject to manufacturer changes / 2023 Specs shown

• Motor	BOSCH Performance Line CX-R BDU3741
  Battery	BOSCH Powertube 625Wh Horizontal
  Display	BOSCH System Controller BCR3100
  Charger	Compact Charger 4A

• Frame	Orbea Wild OMR 2023, 160mm travel, 29″ wheels, Concentric Boost 12×148
  Fork	Fox 38 Float Factory 170 Grip2 QR15x110 Kashima E-Bike Optimized
  Rear Shock	Fox Float X2 Factory Trunnion 2-Position Adjust Kashima custom tune 205x65mm
  Front Brake	Shimano XTR M9120Hydraulic Disc
  Rear Brake	Shimano XTR M9120Hydraulic Disc
  Rear Derailleur	Shimano XTR M9100 SGS Shadow Plus
  Shift Levers	Shimano XTR M9100
  Chain	Shimano CN-9100
  Cassette	Shimano XTR M9100 10-51t 12-Speed
  Crankset	e*thirteen Race Carbon
  Chain Ring	Spec not provided
  Chain Guard	Spec not provided
  Rims	OQUO Mountain Control MC32LTD Carbon
  Front Hub	Spec not provided
  Rear Hub	Spec not provided
  Front Tire	Maxxis Minion DHF 2.60″ 120 TPI FB 3C Maxx Terra Exo+ TR
  Rear Tire	Maxxis Minion DHR II 2.60″ 120 TPI FB 3C Maxx Terra Exo+ TR
  Handlebar	OC Mountain Control MC10 Carbon, Rise 20, Width 800
  Stem	OC Mountain Control MC10 Alu SL, 0º
  Headset	Alloy 1-1/2″, Black Oxidated Bearing
  Grips	Spec not provided
  Saddle	Fizik Terra Aidon X1 145mm
  Seatpost	Fox Transfer Factory Kashima Dropper 31.6mm

• Pedals	Not applicable
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Abus battery powertube lock PLUS
  Mirror	Not applicable

•

  		S/M	LG	XL
  SEAT TUBE (C-T)	1	406	444	483
  TOP TUBE (EFF)	2	585	612	645
  HEAD TUBE	3	100	110	125
  CHAINSTAY	4	455	455	455
  BB HEIGHT	5	345	345	345
  BB DROP*	6	30	30	30
  WHEELBASE	7	1203	1232	1268
  HEAD ANGLE*	8	65,5º	65,5º	65,5º
  SEAT ANGLE*	9	76º	76º	76º
  STANDOVER	10	725	740	765
  REACH	11	430	455	485
  STACK	12	621	630	644
  FORK LENGTH	13	570	570	570
  RAKE		44	44	44

• Motor	Bosch Performance CX Cruise
  Battery	Bosch Powertube 625Wh
  Display	Bosch Kiox
  Charger	Boach 2Ah

  Frame	Orbea Wild Full Suspension 2021 Carbon 160mm Travel, FRONT TRIANGLE: Carbon, REAR TRIANGLE: Carbon, FiberLink, BATTERY COVER: Carbon, Boost 12×148 Bosch Gen4
  Fork	Fox 38 Float Factory 160 Grip2 QR15x110 Kashima E-Bike Optimized
  Rear Shock	Fox DHX2 Factory Trunnion 2-Position Adjust SLS Spring TiN 205x65mm
  Front Brake	Shimano XTR M9120Hydraulic Disc
  Rear Brake	Shimano XTR M9120Hydraulic Disc
  Rear Derailleur	Shimano XTR M9100 SGS Shadow Plus
  Shift Levers	Shimano XTR M9100
  Chain	KMC e12 Turbo Silver
  Cassette	Shimano XTR M9100 10-51t 12-Speed
  Crankset	e*thirteen Race Carbon
  Chain Ring	PW-NW32-G4
  Chain Guard	Spec not provided
  Rims	DT Swiss HXC-1501 Spline 30c TLR 15/110mm 6-Bolt
  Front Hub	Spec not provided
  Rear Hub	Spec not provided
  Front Tire	Maxxis Minion DHF 2.60″ 120 TPI FB 3C Maxx Terra Exo+ TR
  Rear Tire	Maxxis Minion DHF 2.60″ 120 TPI FB 3C Maxx Terra Exo+ TR
  Handlebar	Race Face Next R 35 20mm Rise 800mm
  Stem	Race Face Turbine R 35mm interface
  Headset	OC Key Holder
  Grips	Spec not provided
  Saddle	Fizik Aidon 208x145mm manganese rail
  Seatpost	OC  Mountain Control MC20, 31.6mm, Dropper
