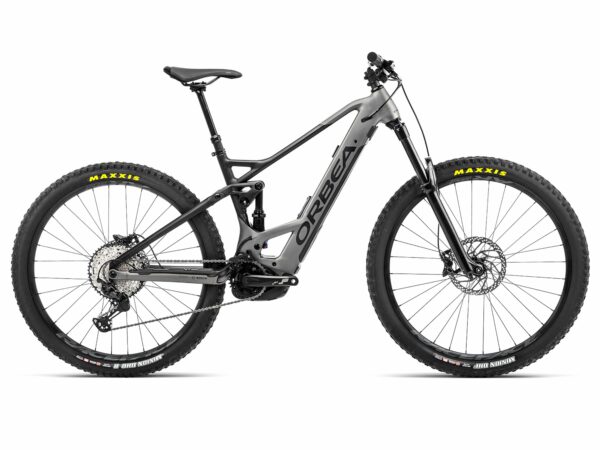

Orbea Wild FS H20

The Full Scoop on the Orbea Wild FS H20

• Description
• Motor System
• Components
• Extras
• Geometry

•
  It’s time to get moving. Load up your pack for an afternoon ride and start pedaling. Whatever obstacles exist between you and the trails and your Special Places, it’s time to run over them with your Orbea Wild FS H20. Conquer steep climbs and push the limits of traction and good judgment on the way back down. Enjoy clever design and sophisticated suspension kinematics, or simply focus on the trail. Orbea Wild FS H20 revitalizes your riding and helps you chart new destinations. Gain maximum capability and speed with the Orbea Wild FS H20 29″ tires. Wide 2.6″ tires offer a bigger contact patch which equals more grip.

• *Components subject to manufacturer changes

• Motor	BOSCH Performance CX Cruise (20mph) BDU480CX
  Battery	BOSCH Powertube 625Wh Horizontal US BBP295
  Display	BOSCH Performance Purion
  Charger	Compact Charger 2A (100-240V) Worldwide

• Frame	ORBEA WILD Full Suspension 2021 Hydroformed Alloy 160mm Travel Boost 12×148 Bosch Gen4
  Fork	RockShox 35 Silver TK Crown adjust Q15x110 Solo Air 160mm
  Rear Shock	Fox Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm
  Front Brake	Shimano M420 Hydraulic Disc
  Rear Brake	Shimano M420 Hydraulic Disc
  Rear Derailleur	Shimano XT M8100 SGS Shadow Plus
  Shift Levers	Shimano Deore M6100 I-Spec EV
  Chain	Shimano M6100
  Cassette	Shimano CS-M7100 10-51t 12-Speed
  Crankset	PW EB04-NW32 G4
  Chain Ring	Spec not provided
  Chain Guard	Spec not provided
  Rims	Race Face AR 30c Tubeless Ready
  Front Hub	Spec not provided
  Rear Hub	Spec not provided
  Front Tire	Maxxis Minion DHF 2.60″ 120 TPI FB 3C Maxx Terra Exo+ TR
  Rear Tire	Maxxis Minion DHR II 2.60″ 120 TPI FB 3C Maxx Terra Exo+ TR
  Handlebar	OC1 35mm 12mm Rise 780mm
  Stem	OC1 3D Forged 35mm interface 7º
  Headset	Spec not provided
  Grips	Spec not provided
  Saddle	Selle Royal Vivo
  Seatpost	OC MC20 Mountain Control Dropper, 31,6mm

• Pedals	Not applicable
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Abus battery powertube lock PLUS
  Mirror	Not applicable

•

  		S	L	XL
  SEAT TUBE (C-T)	1	406	444	483
  TOP TUBE (EFF)	2	585	612	645
  HEAD TUBE	3	100	110	125
  CHAINSTAY	4	455	455	455
  BB HEIGHT	5	345	345	345
  BB DROP*	6	30	30	30
  WHEELBASE	7	1203	1232	1268
  HEAD ANGLE*	8	65,5º	65,5º	65,5º
  SEAT ANGLE*	9	76º	76º	76º
  STANDOVER	10	725	740	765
  REACH	11	430	455	485
  STACK	12	621	630	644
  FORK LENGTH	13	570	570	570
  RAKE		44	44	44
