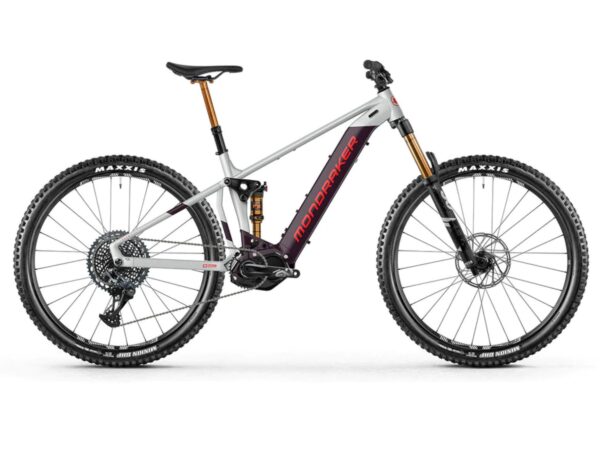

The Full Scoop on the Mondraker Dusk RR SE
-
The Mondraker Dusk RR SE sure packs a punch! Featuring Shimano’s lightest and strongetst eMotor system to date. Forward Geometry, Zero E-Bike Optimized, Stealth Side alloy structure, ability to add range via additional battery pack. Mondraker has really thought through the design and how you could use this bike in a number of applications from allmtn riders to bikepacking!
Not familiar with Mondraker’s Zero Suspension System, well let’s dig into the details on why this system is so popular among the MTB community.
Zero Suspension System – is a dual link design with the shock floating between the two suspension links and compressed from both ends. This makes the rear suspension extremely sensitive on small bumps and big hit capable.
Advantages- Zero power loss. High pedalling efficiency. The power applied to pedals is transformed to immediate forward motion without any extra compression or extension of the rear shock.
- Zero pedal kickback. Chain length growth throughout the suspension travel is minimum, so pedalling is as effective and efficient as possible.
- Zero brake jack. Rear brake forces do not work against suspension forces. The rear shock works supple and freely and absorb impacts without any suspension stiffening caused for the rear brake action.
- Zero bumps. The most remarkable feature of the system is its excellent suppleness on rough terrain and a completely stable ride when pedalling.
Stealth Alloy – encompasses all processes in the creation of the frame, from the industrial design to the specific production of each of its tubes with the calculation of the most precise details. Each tube and part is carefully designed to carry out a specific function while striving to achieve the lowest possible weight. Stealth technology is evolving every year with optimised shapes and internal updates to deliver the best riding experience in our aluminium frames.
- Components subject to manufacturer changes
-
Motor Shimano STEPS EP800 Battery Simplo internal 630Wh w/ option for additional external battery of 360WH Display Shimano STEPS E8000 Charger Spec not provided -
Frame Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor. *Optional external battery Fork Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload Rear Shock Fox Float DPS LV EVOL Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushingsFront Brake Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads Rear Brake Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads Rear Derailleur Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 Shift Levers Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click Chain Sram SX Eagle, 12s, Powerlock Cassette Sram PG-1230, 11-50T, 12s Crankset FSA, 165mm Chain Ring Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD Chain Guard Spec not provided Rims DT Swiss H1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes Front Hub DT 370, Boost 15x110mm, IS 6 bolts Rear Hub DT 370, Boost 12x148mm, Ratchet LN system, IS 6 bolts Front Tire Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead Rear Tire Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead Handlebar Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore Stem Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barboreHeadset Spec not provided Grips Onoff Diamond, 1lock-on, 135mm Saddle Fizik Terra Aidon X5 145mm Seatpost Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x170mm -
Pedals Not applicable Front Light Not applicable Rear Light
Not applicable Kickstand Not applicable Rear Carrier Not applicable Fenders Not applicable Bell Not applicable Lock Not applicable Mirror Not applicable -
S M L XL Seattube length A 380mm 420mm 450mm 490mm Toptube length B 605mm 625mm 650mm 670mm Bottom bracket drop C -25mm -25mm -25mm -25mm Bottom bracket height D 336mm 336mm 336mm 336mm Chainstay length E 455mm 455mm 455mm 455mm Seat tube angle F 73.5° 73.5° 73.5° 73.5° Effective seattube angle G 76° 76° 76° 76° Headtube angle H 65.5° 65.5° 65.5° 65.5° Fork Offset I 44mm 44mm 44mm 44mm Wheelbase J 1225mm 1245mm 1265mm 1285mm Headtube length K 110mm 110mm 130mm 130mm Reach L 450mm 470mm 490mm 510mm Stack M 622mm 622mm 640mm 640mm
