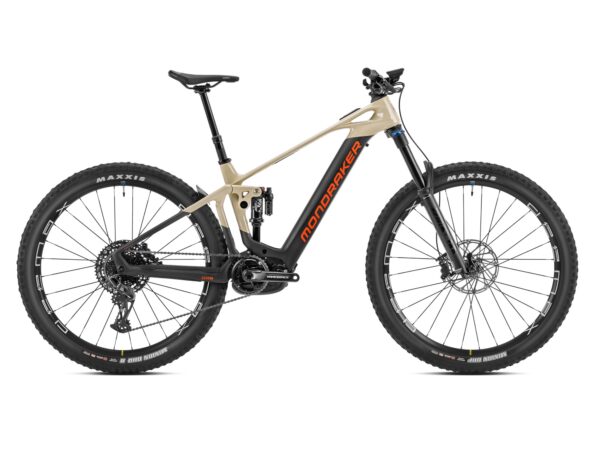

The Full Scoop on the Mondraker Crafty Carbon R
-
-
Get ready to experience the thrill with the Crafty Carbon R e-MTB bike designed for enduro, trail and all-mountain riding! The high-end bike boasts updated suspension kinematics and amazing pedaling efficiency. eBike optimized zero suspension uses large bearings on a one-piece monoblock link for extreme bump absorption for plusher rides.
-
- Components subject to manufacturer changes
-
Motor Bosch Performance Line CX Cruise (20 mph) Smart System Battery Bosch Powertube 750Wh Display Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller Charger Bosch 4Ah -
Frame Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers Fork Fox 38 29 Float GRIP Performance, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload Rear Shock Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushingsFront Brake Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads Rear Brake Sram G2 RS, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads Rear Derailleur Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 Shift Levers Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click Chain Sram NX Eagle, 12s, Powerlock Cassette Sram XG-1230, 11-50T, 12s Crankset Race Face Aeect ebike, 165mm Chain Ring Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD Chain Guard Spec not provided Rims Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes Front Hub Mavic, Boost 15x110mm, IS 6 bolts Rear Hub Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts Front Tire
Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead Rear Tire Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead Handlebars ONOFF Krypton 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore Stem ONOFF Krypton FG 30mm, CNC, 31.8mm barbore Headset Spec not provided Grips Onoff Desert, 1lock-on, 135mm, sizes: S/M L/XL Saddle Fizik Terra Aidon X5 145mm Seatpost Onoff Pija dropper internal, d iameter 31.6mm, S size: 405×95-125mm, M size 458×120-150mm, L size: 498×140-170mm, XL size: 498×140-170mm -
Pedals Not applicable Front Light Not applicable Rear Light Not applicable Kickstand Not applicable Rear Carrier Not applicable Fenders Not applicable Bell Not applicable Lock Not applicable Mirror Not applicable -
