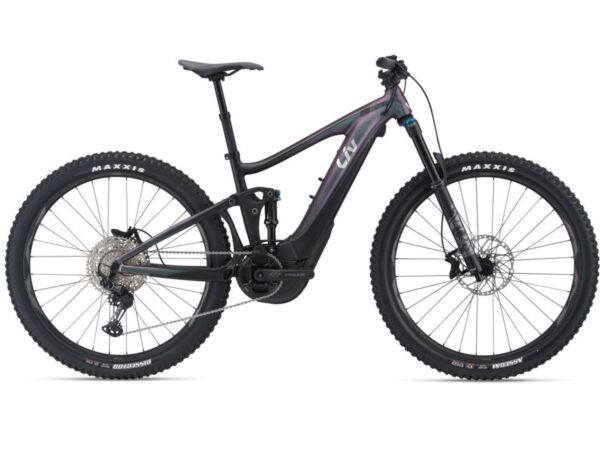

The Full Scoop on the Liv Intrigue X E+ 2 Pro
-
Intrigue X E+ is ready to up your game. The eMTB that never holds you back! Intrigue X E+ does it all. Climbs like a champ and descends with trail-ready confidence to take you to the next level.
- Components subject to manufacturer changes.
-
Motor Giant SyncDrive Pro Battery Giant EnergyPak Smart Integrated 625Wh, 36V 13.8Ah rechargeable lithium-ion, Giant EnergyPak Plus range extender compatible Display Wireless display compatible Charger Giant EnergyPak Smart 6A -
Frame ALUXX SL-Grade Aluminum front and rear triangles, 140mm Maestro suspension system, flip chip Fork Fox 36 Float Rhythm, 150mm, EVOL, GRIP Damper, Boost 110×15 QR, 44mm offset, e-optimized, custom tuned for Liv Rear Shock Fox Float DPS Performance, EVOL large volume sleeve, 3-position lever, 185/52.5, custom tuned for Liv Front Brake Shimano Deore hydraulic 4-piston, 203mm Rear Brake Shimano Deore hydraulic 4-piston, 203mm Rear Derailleur Shimano Deore XT, Shadow+ Shift Levers Shimano SLX 12-speed i-spec EV Chain KMC e.12 Turbo, EcoProteq, e-bike optimized Cassette Shimano Deore, 12-speed, 10×51 Crankset Praxis e-Cadet+ alloy, cold forged 4130 Wave 36t, MRP V3 TR guide Chain Ring Spec not provided Chain Guard Spec not provided Rims Giant AM 29 wheelset, alloy, 30mm inner Front Hub Shimano MT410 Boost 15x110mm Rear Hub Shimano MT410 Boost 12x148mm sealed bearing Front Tire Maxxis Assegai, tubeless, 27.5 or 29×2.6, foldable, EXO Rear Tire Maxxis Dissector, tubeless, 27.5 or 29×2.6, foldable, EXO+ Handlebar Giant Contact 35 Trail, 35×760~780mm (XS-S: 760 / M-L: 780) Stem Giant Contact SL 35 Headset Spec not provided Grips Spec not provided Saddle Giant Sport Custom Seatpost Giant Contact Switch, dropper, 30,9mm ( (XS-S: 100, M:125, L:150) -
Pedals Platform Front Light Not applicable Rear Light Not applicable Kickstand Not applicable Rear Carrier Not applicable Fenders Not applicable Bell Not applicable Lock Not applicable Mirror Not applicable -
XS S M L RIDER HEIGHT 5’0″ – 5’4″ 5’2″ – 5’7″ 5’5″ – 5’9″ 5’7″ – 5’11” FRAME ADJUSTMENT SETTING Low | High Low | High Low | High Low | High SEAT TUBE LENGTH (inch) A 15.2 15.9 17.1 18.1 SEAT TUBE ANGLE B 74.5° | 75.2° 76.0° | 76.7° 76.0° | 76.7° 76.0° | 76.7° TOP TUBE LENGTH (inch) C 22.2 | 22.2 22.4 | 22.4 23 | 23 23.8 | 23.8 HEAD TUBE LENGTH (inch) D 3.7 3.7 3.9 4.3 HEAD TUBE ANGLE E 65.0° | 65.7° 65.8° | 66.5° 65.8° | 66.5° 65.8° | 66.5° FORK RAKE (inch) F 1.7 1.7 1.7 1.7 TRAIL (inch) G 5.1 | 4.9 4.8 | 4.6 4.8 | 4.6 4.8 | 4.6 WHEELBASE (inch) H 46.9 | 47 47 | 47.2 47.8 | 47.9 48.6 | 48.7 CHAIN STAY LENGTH (inch) I 18.6 | 18.6 18.6 | 18.6 18.6 | 18.6 18.6 | 18.6 BOTTOM BRACKET DROP (inch) J 1.2 | 0.8 1.2 | 0.8 1.2 | 0.8 1.2 | 0.8 STACK (inch) K 23 | 22.8 23.9 | 23.7 24.1 | 23.9 24.5 | 24.3 REACH (inch) L 15.9 | 16.2 16.4 | 16.8 17 | 17.4 17.7 | 18.1 STAND OVER HEIGHT (inch) M 28.7 | 29.1 29.6 | 29.9 30.2 | 30.5 30.5 | 30.8 HANDLEBAR WIDTH (inch) N 29.5 29.5 30.7 30.7 STEM LENGTH (inch) O 1.6 1.6 2 2.4 CRANK LENGTH (inch) P 6.3 6.5 6.5 6.7 WHEEL SIZE Q 27.5″ 29″ 29″ 29″
