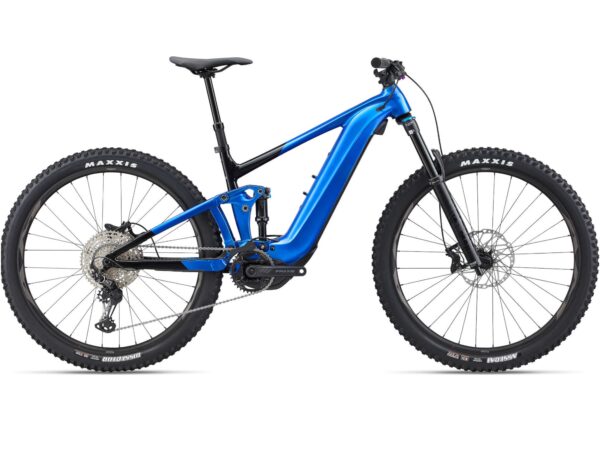

The Full Scoop on the Giant Trance X E+ 2 Pro 29
-
Faster up the climbs, longer loops, more singletrack fun on any given day. Give yourself the freedom to extend your trail-riding adventures with this powerful, smooth-riding 29er.
-
The SyncDrive Pro motor gives the new Trance X E+ Pro 29 a massive 80Nm of torque and 360 percent tunable support, all controlled by the new Giant E-bike App. This gives you the freedom to ride trails the way you want to. You can choose full power to ease your pedaling effort or tune it less aggressively to get more of a workout. Featuring 140mm of smooth Maestro suspension travel in the rear, 150mm up front, and progressive frame geometry that’s designed for 29-inch wheels, this is a whole new way to tackle technical singletrack trails. The EnergyPak 625 battery is cleanly integrated into the downtube of the lightweight ALUXX SL frame.
- Components subject to manufacturer changes.
-
Motor Giant SyncDrive Pro, 80Nm, 360% tuneable support, powered by YAMAHA. Pedal assist up to 20 mph. Battery EnergyPak Smart 625Wh, EnergyPak Plus range extender compatible Display RideControl GO, frame integrated LED displayANT+ Wireless display compatible Charger Giant EnergyPak Smart 6A -
Frame ALUXX SL-Grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, ‘Boost’ 148×12 UDH derrailleur hanger, Giant EnergyPak Plus Range Extender Compatible Fork Fox 36 Float Rhythm, 150mm travel, 44mm offset, EVOL, Grip Damper, Sweep adjust, Boost 110x15QR, e-optimized Rear Shock Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185×52.5mm Trunnion mount, custom tunedFront Brake Shimano Deore BR-M6120, 4-piston, hydraulic disc, 203mm Rear Brake Shimano Deore BR-M6120, 4-piston, hydraulic disc, 203mm Rear Derailleur Shimano Deore XT, 12-Speed, Shadow+ Shift Levers Shimano SLX Chain KMC e.12 Turbo, EcoProteq, e-bike optimized Cassette Shimano CS-M7100-12, 10-51T, 12-Speed Crankset Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170) Chain Ring Spec not provided Chain Guard Spec not provided Rims Giant AM 29″, Tubeless ready, 30mm inner width Front Hub Shimano MT410 Boost, Center-Lock, [F] 110×15 Rear Hub [R] 148x12mm Micro-Spline Drive Body Thru-axle Front Tire Maxxis Assegai 29×2.6″ foldable, Tubeless, EXO, 3c MaxxTerra Rear Tire Maxxis Dissector 29×2.6″ Foldable, Tubeless, EXO+, 120tpi 3C Compound Handlebar Giant Contact 35 Trail, 35x780mm Stem Giant Contact SL 35 Headset Spec not provided Grips Giant Tactal Pro-E, single lock-on Saddle Giant Romero Trail Seatpost Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170) -
Pedals Flat Pedal Front Light Not applicable Rear Light Not applicable Kickstand Not applicable Rear Carrier Not applicable Fenders Not applicable Bell Not applicable Lock Not applicable Mirror Not applicable -
S M L XL RIDER HEIGHT 5’4″ – 5’9″ 5’7″ – 6’0″ 5’10” – 6’3″ 6’2″ – 6’6″ FRAME ADJUSTMENT SETTING Low | High Low | High Low | High Low | High SEAT TUBE LENGTH (inch) A 15.7 16.7 17.7 18.7 SEAT TUBE ANGLE B 76.0° | 76.7° 76.0° | 76.7° 76.0° | 76.7° 76.0° | 76.7° TOP TUBE LENGTH (inch) C 22.7 | 22.6 24 | 23.8 25.1 | 25 26.3 | 26.2 HEAD TUBE LENGTH (inch) D 3.7 3.9 4.3 4.7 HEAD TUBE ANGLE E 65.7° | 66.5° 65.8° | 66.5° 65.8° | 66.5° 65.8° | 66.5° FORK RAKE (inch) F 1.7 1.7 1.7 1.7 TRAIL (inch) G 4.6 | 4.8 4.6 | 4.8 4.6 | 4.8 4.6 | 4.8 WHEELBASE (inch) H 47.4 | 47.5 48.8 | 48.7 49.9 | 50 51.2 | 51.2 CHAIN STAY LENGTH (inch) I 18.6 | 18.6 18.6 | 18.6 18.6 | 18.6 18.6 | 18.6 BOTTOM BRACKET DROP (inch) J 1.2 | 0.8 1.2 | 0.8 1.2 | 0.8 1.2 | 0.8 STACK (inch) K 23.9 | 23.7 24.1 | 23.8 24.4 | 24.2 24.8 | 24.6 REACH (inch) L 17.3 | 17.6 18 | 18.2 19 | 19.3 20.1 | 20.4 STAND OVER HEIGHT (inch) M 30.8 | 31.1 30.5 | 30.9 30 | 30.3 30.5 | 30.8 HANDLEBAR WIDTH (inch) N 30.7 30.7 30.7 30.7 STEM LENGTH (inch) O 1.6 2 2 2.4 CRANK LENGTH (inch) P 6.3 6.5 6.5 6.7 WHEEL SIZE Q 29″ 29″ 29″ 29″
