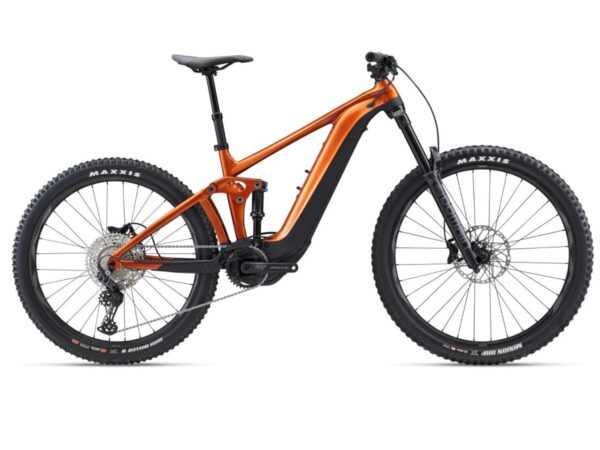

Giant Reign E+ 3

The Full Scoop on the Giant Reign E+ 3

• Description
• Motor System
• Components
• Extras
• Geometry

•
  Every trail, every steep climb, every thrilling descent. Tested and developed by Giant’s E-bike enduro pros, this updated trail ripper gives you the power to enjoy the best parts of the ride again and again..

• Components subject to manufacturer changes.

• Motor	Giant SyncDrive Pro 85Nm, powered by YAMAHA
  Battery	EnergyPak Smart 625WhEnergyPak Plus range extender compatible
  Display	RideControl GO, frame integrated LED displayANT+ Wireless display compatible
  Charger	Giant EnergyPak Smart 6A

• Frame	ALUXX SL-grade Aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, ‘Boost’ 148x12mm, UDHTM derrailleur hanger
  Fork	RockShox Domain R 29er, 170mm travel, 15×110 Boost, Maxle Stealth, E-bike Approved
  Rear Shock	Fox Float DPS Performance, EVOL Large Volume sleeve, 2-position lever, 205×62.5mm Trunnion mount, custom tuned
  Front Brake	Shimano Deore BR-M4120, 4-piston, hydraulic disc, 203mm
  Rear Brake	Shimano Deore BR-M4120, 4-piston, hydraulic disc, 203mm
  Rear Derailleur	Shimano Deore 12-speed
  Shift Levers	Shimano Deore
  Chain	KMC e.12 Turbo, EcoProteq, e-bike optimized
  Cassette	Shimano Deore CS-M6100-12, 10-51T, 12-speed
  Crankset	Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S/M:160, L/XL:165)
  Chain Ring	Spec not provided
  Chain Guard	Spec not provided
  Rims	Giant AM 29″[F] 27.5″[R], Tubeless ready, 30mm inner width
  Front Hub	Shimano MT410 Boost, Center-Lock,  110×15
  Rear Hub	Shimano MT410 Boost 148x12mm Micro-Spline Drive Body Thru-axle
  Front Tire	Maxxis Minion DHF 29×2.6″ foldable, Tubeless, EXO+, 3C MaxxTerra
  Rear Tire	Maxxis High Roller II 27.5×2.5″ foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound
  Handlebar	Giant Contact Trail, 35x800mm
  Stem	Giant Contact SL 35
  Headset	Spec not provided
  Grips	Giant Tactal Pro-E, single lock-on
  Saddle	Giant Romero Trail
  Seatpost	Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)

• Pedals	Flat Pedal
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

•

  		S	M	L	XL
  RIDER HEIGHT		5’4″ – 5’9″	5’7″ – 6’0″	5’10” – 6’3″	6’2″ – 6’6″
  FRAME ADJUSTMENT SETTING		Low | High	Low | High	Low | High	Low | High
  SEAT TUBE LENGTH (inch)	A	15.7	16.7	17.7	18.7
  SEAT TUBE ANGLE	B	76.7° | 77.5°	76.7° | 77.5°	76.7° | 77.5°	76.7° | 77.5°
  TOP TUBE LENGTH (inch)	C	22.4 | 22.4	23.4 | 23.4	24.5 | 24.4	25.6 | 25.5
  HEAD TUBE LENGTH (inch)	D	3.9	3.9	4.3	4.7
  HEAD TUBE ANGLE	E	63.7° | 64.5°°	63.7° | 64.5°	63.7° | 64.5°	63.7° | 64.5°
  FORK RAKE (inch)	F	1.7	1.7	1.7	1.7
  TRAIL (inch)	G	5.3 | 5.2	5.3 | 5.2	5.3 | 5.2	5.3 | 5.2
  WHEELBASE (inch)	H	47.6 | 47.6	48.7 | 48.7	49.8 | 49.8	51.1 | 51.1
  CHAIN STAY LENGTH (inch)	I	18 | 17.9	17.9 | 17.9	17.9 | 17.9	17.9 | 17.9
  BOTTOM BRACKET DROP (inch)	J	1 | 0.6	1 | 0.6	1 | 0.6	1 | 0.6
  STACK (inch)	K	25 | 24.9	25 | 24.9	25.4 | 25.2	25.7 | 25.6
  REACH (inch)	L	16.7 | 16.9	17.7 | 17.9	18.7 | 18.9	19.7 | 19.9
  STAND OVER HEIGHT (inch)	M	30.9 | 31.1	30.4 | 30.6	30.4 | 30.5	30.2 | 30.4
  HANDLEBAR WIDTH (inch)	N	31.5	31.5	31.5	31.5
  STEM LENGTH (inch)	O	1.6	1.6	2	2
  CRANK LENGTH (inch)	P	6.3	6.3	6.5	6.5
  WHEEL SIZE	Q	F29″ / R27.5″	F29″ / R27.5″	F29″ / R27.5″	F29″ / R27.5″
