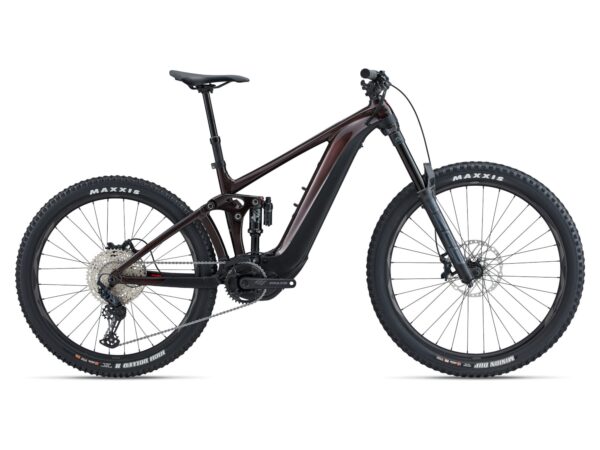

Giant Reign E+ 2

The Full Scoop on the Giant Reign E+ 2

• Description
• Motor System
• Components
• Extras
• Geometry

•
  Every trail, every steep climb, every thrilling descent. Tested and developed by Giant’s E-bike enduro pros, this updated trail ripper gives you the power to enjoy the best parts of the ride again and again..

• Components subject to manufacturer changes.

• Motor	Giant SyncDrive Pro 85Nm, powered by YAMAHA
  Battery	EnergyPak Smart 800, EnergyPak Plus range extender compatible (excludes size small)
  Display	RideControl GO, frame integrated. Wireless display compatible
  Charger	Giant EnergyPak Smart 6A

• Frame	ALUXX SL-grade Aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, ‘Boost’ 148x12mm, Universal derrailleur hanger
  Fork	RockShox ZEB Select 29er, 170mm travel, Charger RC damper, 15×110 Boost, Maxle Stealth, E-bike Approved
  Rear Shock	FFox Float X Performance, EVOL Large Volume sleeve, 2-position lever, 205×62.5mm Trunnion mount, custom tuned
  Front Brake	Shimano SLX BR-M7120, 4-piston, hydraulic disc, 203mm
  Rear Brake	Shimano SLX BR-M7120, 4-piston, hydraulic disc, 203mm
  Rear Derailleur	Shimano Deore SLX, 12-speed, Shadow+
  Shift Levers	Shimano Deore SLX
  Chain	KMC e.12 Turbo, EcoProteq, e-bike optimized
  Cassette	Shimano HG-M6100, 10-51T, 12-speed
  Crankset	Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S/M:160, L/XL:165)
  Chain Ring	Spec not provided
  Chain Guard	Spec not provided
  Rims	Giant AM 29″[F] 27.5″[R], Tubeless ready, 30mm inner width
  Front Hub	Shimano MT410 Boost, Center-Lock,  110×15
  Rear Hub	Shimano MT410 Boost 148x12mm Micro-Spline Drive Body Thru-axle
  Front Tire	Maxxis Minion DHF 29×2.6″ foldable, Tubeless, EXO+, 3C MaxxTerra
  Rear Tire	Maxxis High Roller II 27.5×2.5″ foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound
  Handlebar	Giant Contact Trail, 35x800mm
  Stem	Giant Contact SL 35
  Headset	Spec not provided
  Grips	Spec not provided
  Saddle	Giant Romero Trail
  Seatpost	Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)

• Pedals	Flat Pedal
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

•

  		S	M	L	XL
  RIDER HEIGHT		5’4″ – 5’9″	5’7″ – 6’0″	5’10” – 6’3″	6’2″ – 6’6″
  FRAME ADJUSTMENT SETTING		Low | High	Low | High	Low | High	Low | High
  SEAT TUBE LENGTH (inch)	A	15.7	16.7	17.7	18.7
  SEAT TUBE ANGLE	B	767° | 77.5°	76.7° | 77.5°	76.7° | 77.5°	76.7° | 77.5°
  TOP TUBE LENGTH (inch)	C	22.4 | 22.4	23.4 | 23.4	24.5 | 24.4	25.6 | 25.5
  HEAD TUBE LENGTH (inch)	D	3.9	3.9	4.3	4.7
  HEAD TUBE ANGLE	E	63.7° | 64.5°°	63.7° | 64.5°	63.7° | 64.5°	63.7° | 64.5°
  FORK RAKE (inch)	F	1.7	1.7	1.7	1.7
  TRAIL (inch)	G	5.3 | 5.2	5.3 | 5.2	5.3 | 5.2	5.3 | 5.2
  WHEELBASE (inch)	H	47.6 | 47.6	48.7 | 48.7	49.8 | 49.8	51.1 | 51.1
  CHAIN STAY LENGTH (inch)	I	17.9 | 17.9	17.9 | 17.9	17.9 | 17.9	17.9 | 17.9
  BOTTOM BRACKET DROP (inch)	J	1 | 0.6	1 | 0.6	1 | 0.6	1 | 0.6
  STACK (inch)	K	25 | 24.9	25 | 24.9	25.4 | 25.2	25.7 | 25.6
  REACH (inch)	L	16.7 | 16.9	17.7 | 17.9	18.7 | 18.9	19.7 | 19.9
  STAND OVER HEIGHT (inch)	M	30.9 | 31.1	30.4 | 30.6	30.4 | 30.5	30.2 | 30.4
  HANDLEBAR WIDTH (inch)	N	31.5	31.5	31.5	31.5
  STEM LENGTH (inch)	O	1.6	1.6	2	2
  CRANK LENGTH (inch)	P	6.3	6.3	6.5	6.5
  WHEEL SIZE	Q	F29″ / R27.5″	F29″ / R27.5″	F29″ / R27.5″	F29″ / R27.5″
