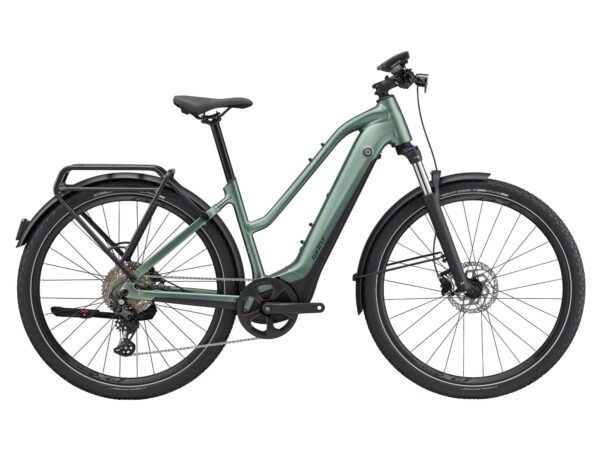

Giant Explore E+ 1 STA 28MPH

The Full Scoop on the Giant Explore E+ 1 STA

• Description
• Motor System
• Components
• Extras
• Geometry

•
  Enjoy the journey to your chosen destination. The Giant Explore E+ 1 STA is ideal for trekking, commuting, riding or simply boosting the fun factor on any ride.

• Components subject to manufacturer changes.

• Motor	SyncDrive Life, 60 Nm, powered by YAMAHA
  Battery	EnergyPak Smart 500Wh EnergyPak Plus range extender compatible
  Display	RideDash Evo
  Charger	Spec not provided

• Frame	ALUXX Aluminum, Overdrive 1½ – 1⅛” head tube, integrated KS18 kickstand mount
  Fork	SR Suntour NEX E25 NLO 63mm travel 15AH
  Rear Shock	Not applicable
  Front Brake	Tektro HD-M275, hydraulic disc, 160/180mm
  Rear Brake	Tektro HD-M275, hydraulic disc, 160/180mm
  Rear Derailleur	Shimano Alivio, 9-speed
  Shift Levers	Shimano Altus
  Chain	KMC e.9 Sport, e-bike optimized
  Cassette	Shimano CS-HG200, 11-36T, 9-speed
  Crankset	Forged Alloy minimal Q-factor, 42T
  Chain Ring	Spec not provided
  Chain Guard	Spec not provided
  Rims	Giant eX2, Tubeless Ready, 700c Aluminium
  Front Hub	Giant eTracker 100x9mm
  Rear Hub	Giant eTracker 135mm QR
  Front Tire	Giant Crosscut Gravel 2, 700x45c (622×45), Tubeless Ready, Reflex
  Rear Tire	Giant Crosscut Gravel 2, 700x45c (622×45), Tubeless Ready, Reflex
  Handlebar	Giant Connect Riser 31.8x 620/690mm
  Stem	Giant Contact
  Headset	Spec not provided
  Grips	Giant Contact Ergo Max Plus
  Saddle	Selle Royal Vivo ergo Moderate
  Seatpost	Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium

• Pedals	Aluminum Platform
  Front Light	Axa BlueLine 30Lux Steady E6
  Rear Light	Axa BlueLine Steady E6
  Kickstand	Spec not provided
  Rear Carrier	MIK rack. System bag & basket compatible
  Fenders	Included
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

•

  		S	M	L
  RIDER HEIGHT		5’4″ – 5’8″	5’7″ – 5’10”	5’9″ – 6’1″
  SEAT TUBE LENGTH (inch)	A	17.1	19.1	21.1
  SEAT TUBE ANGLE	B	73.0°	73.0°	73.0°
  TOP TUBE LENGTH (inch)	C	22.4	23.2	24
  HEAD TUBE LENGTH (inch)	D	5.1	5.5	6.1
  HEAD TUBE ANGLE	E	69.5°	69.5°	69.5°
  FORK RAKE (inch)	F	1.7	1.7	1.7
  TRAIL (inch)	G	3.6	3.6	3.6
  WHEELBASE (inch)	H	43.8	44.1	45
  CHAIN STAY LENGTH (inch)	I	17.9	17.9	17.9
  BOTTOM BRACKET DROP (inch)	J	2.4	2.4	2.4
  STACK (inch)	K	24	24.3	24.9
  REACH (inch)	L	15.1	15.8	16.4
  STAND OVER HEIGHT (inch)	M	26.9	26.6	26.2
  HANDLEBAR WIDTH (inch)	N	27.2	27.2	27.2
  STEM LENGTH (inch)	O	2.4	2.8	3.1
  CRANK LENGTH (inch)	P	6.7	6.7	6.7
  WHEEL SIZE	Q	700C	700C	700C
